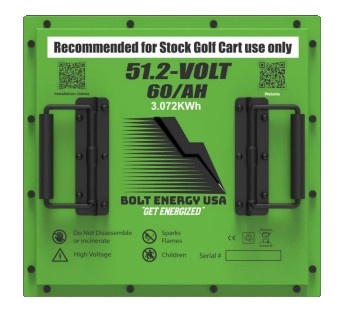

51.2V 60AH “FLEET” Pro or Standard Kit

PN: BOBE-6051F

Introducing the newest member of the Bolt Energy USA lineup:

The 51V 60AH “Lead Acid Assassin.” Designed to outperform traditional lead-acid batteries, this innovative solution delivers exceptional value and reliability at a highly competitive price.

With a range of 12 to 24 miles. Comparable to or exceeding traditional lead-acid options, these batteries come with Bolt’s industry-leading 10-year warranty. This not only eliminates the recurring cost and inconvenience of replacing multiple lead acid sets but also provides long-term savings and peace of mind for you the customer.

Important Note: This product is not designed for high performance or heavy-duty applications. Always consult the specifications sheet prior to installation.

SPECIFICATIONS 51V 60AH “FLEET”

MECHANICAL SPECIFICATIONS
•Dimensions (L x W x H): 12.8″ x 12.01″ x 10.42″
•Weight: 72.75lbs (35.7kg)
•Terminal Type: M81.525mm
•Cell Configuration: 1P16S
•Case Material: Powder Coated Steel
•Enclosure Protection: Designed with IP66 Standard
•Cell Type – Chemistry: Cylindrical LiFeP04

ELECTRICAL SPECIFICATION
•Nominal Voltage: 51.2V
•Working Voltage: 43.2 – 58.4V
•Recommended Voltage: 48.0V – 57.0V
•Nominal Capacity: 60Ah
•Energy: 3,072Wh
•Capacity @ 20A: 180 min
•Efficiency: 0.99
•Self Discharge: <3% per Month

COMMUNICATION
•Bluetooth: Bluetooth receiver
•CAN: CAN port for testing battery

DISCHARGE SPECIFICATIONS
•Maximum Continuous Discharge Current: 185A
•Peak Discharge Current: 400A ± 12A (1S)
•BMS Discharge Current Cut-Off:

250 A ± 7.5A (30S)
400A ± 12A (1S)

•BMS Discharge Voltage Cut-Off: 40V
•Recommended Low Voltage Disconnect: 48.0V
•BMS Reconnect Voltage: 41.6V
•Discharge Temperature: -4 to 149°F (-20 to 65°C)

CHARGE SPECIFICATIONS
•Recommended Charge Current: <30A
•Maximum Input Current: 200A (30s)
•Charge Current Cut-Off: 225A
•BMS Charge Voltage Cut-Off: 58.5V
•Reconnect Voltage: <58.5V
•Charging Temp. Range: 34°F to 140°F (0-60°C)
